Stock #

Description:

Qty.

Price:

14304

RELAY, GRS, NON-VITAL, GROUND FAULT, TCR,  TGSR06(GE).  GENERAL RAILWAY SIGNAL CO*TGSR06(GE)

8

 GE G.F. BREAKER
(2) LCFTNOWELLBIN01-30-2023A

15322

RELAY, GRS NON VITAL, AUTOMATIC EQUIPTMENT  CONTROL, TCR, TYPE JT, GENERAL RAILWAY SIGNAL CO,  31580-1, 2FB, 10A-115VAC.  GENERAL RAILWAY SIGNAL CO*31580-1

4

 (4)LCFTNORLV1BOXA

15001

ALSTOM Signaling Products
RELAY, GRS NON VITAL, ESR 56001-774 GR-01, GENERAL RAILWAY SIGNAL CO, 56001-774GR01, B1.  GENERAL RAILWAY SIGNAL CO*56001-774GR01
56001-774-01  B1, Slow-Release, 4fB, (194 ohms) ,  0.031a 3.0-3.75 sec at 12V
Type B1 and B2 Neutral Slow-Acting Relay (Direct Current)
• In slow-release and slow-pickup relays, the time delay is
determined by copper or aluminum slugs or copper
washers on the cores • The time of release is the time
required to open the front contacts after energy is removed
from the relay • Time of pickup is the time required
to close the front contacts after energy is applied to the relay
B1 Slow-Release 4FB 194 0.031A 3.0-3.75 sec at 12V 56001-774-01


127




  HOW TO
 ORDER

LIST PRICE
$ 795.00
 RELAY  (2) LCFTNOWELLBIN
01-30-2023A
(100) lc844

24089

ALSTOM Signaling Products
RELAY NONVITAL, OCTAL BASE, PLUG IN TYPE  GRS*36450-247-00
• Easy to maintain – no wires need to be disconnected or hardware removed for inspection or replacement
• Resistant to impact and vibration
• Positive mechanical keying
• Double break safety contacts standard
• Available as a timing relay (From 0.25 Sec. to 63.75 Min.)
• Available in a variety of voltages(12 VDC, 24 VDC, 115 VDC, 12  VAC, 127 VAC)
 LCFTNWHRTAB
BOXMARTAA

3

24090

ALSTOM Signaling Products
RELAY NONVITAL, OCTAL BASE, PLUG IN TYPE  GRS*36450-272-00
• Easy to maintain – no wires need to be disconnected or hardware removed for inspection or replacement
• Resistant to impact and vibration
• Positive mechanical keying
• Double break safety contacts standard
• Available as a timing relay (From 0.25 Sec. to 63.75 Min.)
• Available in a variety of voltages(12 VDC, 24 VDC, 115 VDC, 12
VAC, 127 VAC)


4

24094

ALSTOM Signaling Products
RELAY NONVITAL, OCTAL BASE, PLUG IN TYPE  GRS*36450-184-00
• Easy to maintain – no wires need to be disconnected or hardware removed for inspection or replacement
• Resistant to impact and vibration
• Positive mechanical keying
• Double break safety contacts standard
• Available as a timing relay (From 0.25 Sec. to 63.75 Min.)
• Available in a variety of voltages(12 VDC, 24 VDC, 115 VDC, 12
VAC, 127 VAC)

2


 (2)LCFTNORTAB
MARTABINB

14303

RELAY, GRS VITAL, AC TRK CKT, TCR, B2 VANE,  GENERAL RAILWAY SIGNAL CO, 56005-100GR9.  GENERAL RAILWAY SIGNAL CO*56005-100GR9

3

  HOW TO
 ORDER

14685

ANSALDO Signaling Products PC-250B/EL  N40115902
RELAY, US&S VITAL, CODE FOLLOWING RELAY , TCR, PC250B, UNION  SWITCH & SIGNAL DIV, N322559-802.  UNION SWITCH & SIGNAL DIV*N322559-802
PC-250B/EL SS Plug-In Solid-State Code Follower - Biased
(Replacement for PC-250B Relay)
Electro-mechanical code-following relays have
been used for years to receive the pulses of coded
energy. While these code followers have proven
to be reliable performers, their mechanisms
require periodic inspection and maintenance.
ASTS USA has developed a more cost-effective
yet equally dependable alternative: the PC-
250B/EL SS biased solid-state code follower.

10


HOW TO
 ORDER

15043

ANSALDO Signaling Products PN-I50B
RELAY, US&S VITAL, AF TRK, TCR, PNI50B,N322500-701  UNION SWITCH & SIGNAL DIV*N322500-701

1

15044

ANSALDO Signaling Products PC-250TR        PC250TR
RELAY, US&S VITAL, TRACK, TCR, PC250,N322556-818  UNION SWITCH & SIGNAL DIV*N322556-818
The PC-250TR relay is manufactured with various combinations of low voltage (L.V.) silver platinum and high voltage (H.V.) tungsten contacts. The PC-250TR relay is available in a range of operating frequencies: 50, 75, 120, 180, 270 and 420 cycles per minute. The relay is factory calibrated to operate across a wide environmental range. All moving parts are enclosed in a sturdy, transparent, dust and moisture resistant cover. Indexing pins in the relay ensure installing in the proper base. Relays lock securely in the plug-in position.

6


HOW TO
 ORDER
 LCFTNWILLBOX
01-15-2023A

15655

ANSALDO Signaling Products PN-250B
RELAY, US&S VITAL,LINE, TCR,  ANSALDO PN-250B,  N322554-802.NORMAL BIASED  UNION SWITCH & SIGNAL DIV*N322554-802
The PN-250B relay is a biased relay designed for use
in line and logic circuits. It is used in place of the PN-
150B relay when additional contacts are required.
Coils of this relay may be externally connected in
series or in multiple.

10




HOW TO
 ORDER

15657

ANSALDO Signaling Products PV-250
RELAY, US&S VITAL, AC TRK CKT, TCR, PV250 AC VANE, N342555-803  UNION SWITCH & SIGNAL DIV*N342555-803

3

15829

ANSALDO Signaling Products PN-150B
RELAY, US&S VITAL,TRK CKT, TCR, PN150,N322500-807.  UNION SWITCH & SIGNAL DIV*N322500-8PN-150B Biased Relay
General Description
The PN-150B relay is designed for use in line and
logic circuits requiring contact capacities up to 4
amperes. If greater capacity is required, the PN-
150HD relay is recommended (see RSE-4E2). 07


14



HOW TO
 ORDER

15883

ANSALDO Signaling Products PN-150BD 3-Position Biased Relay
RELAY, US&S VITAL, DC BIASED, TCR,  PN150BD,N322504-703  UNION SWITCH & SIGNAL DIV*N322504-703
The PN-150BD relay is a 3-position relay that is a
combination of two biased relays to sense that a
circuit is (a) deenergized, (b) energized with normal
polarity, or (c) energized with reverse polarity. Each
applied polarity energizes one of the biased
armatures which, in turn, actuates three transfer
contacts.

2




HOW TO
 ORDER

15884

ANSALDO Signaling Products PC-57
RELAY, US&S VITAL, CODE XMIT TCR, PC57,N232133-001  UNION SWITCH & SIGNAL DIV*N232133-001

4

15886

ANSALDO Signaling Products PF-256
RELAY, US&S VITAL, FLASHER, TCR,  PF256,N322561-802.  UNION SWITCH & SIGNAL DIV*N322561-802

25

17212

ANSALDO Signaling Products PN-150BSR         PN150BSR
RELAY, US&S VITAL, 4 WIRE REP, TCR RACK,6FB 250  OHM, UNION SWITCH & SIGNAL DIV, N322503-702. PN  150BSR, (US&S)FSC#59-45  UNION SWITCH & SIGNAL DIV*N322503-702

2

  HOW TO
 ORDER

METRO RELAYS

108937

ANSALDO Signaling Products PN-50,   1300  OHMS         USS                                    PICTURE

15
90

LCFTNRELAYBIN1
LCFTNPN50 BOX11

229734
229735

ANSALDO Signaling Products PN-50,   400 OHMS         USS

3
4

LCFTNRELAYBIN1
LCFTNPN50 BOX1

256964

ANSALDO Signaling Products PN-50,   4 OHMS              USS                                     PICTURE

2
1

LCFTNRELAYBIN1
 LCFTNPN50 BOX11

256964

ANSALDO Signaling Products PN-50,   1300 OHMS           USS

1

LCFTNRELAYBIN1

292689

ANSALDO Signaling Products PN-50B,   1300 OHMS             USS                            PICTURE

8

(5)LCFTNRELAYBOX11
 (3)LCFTNRELAYBIN1

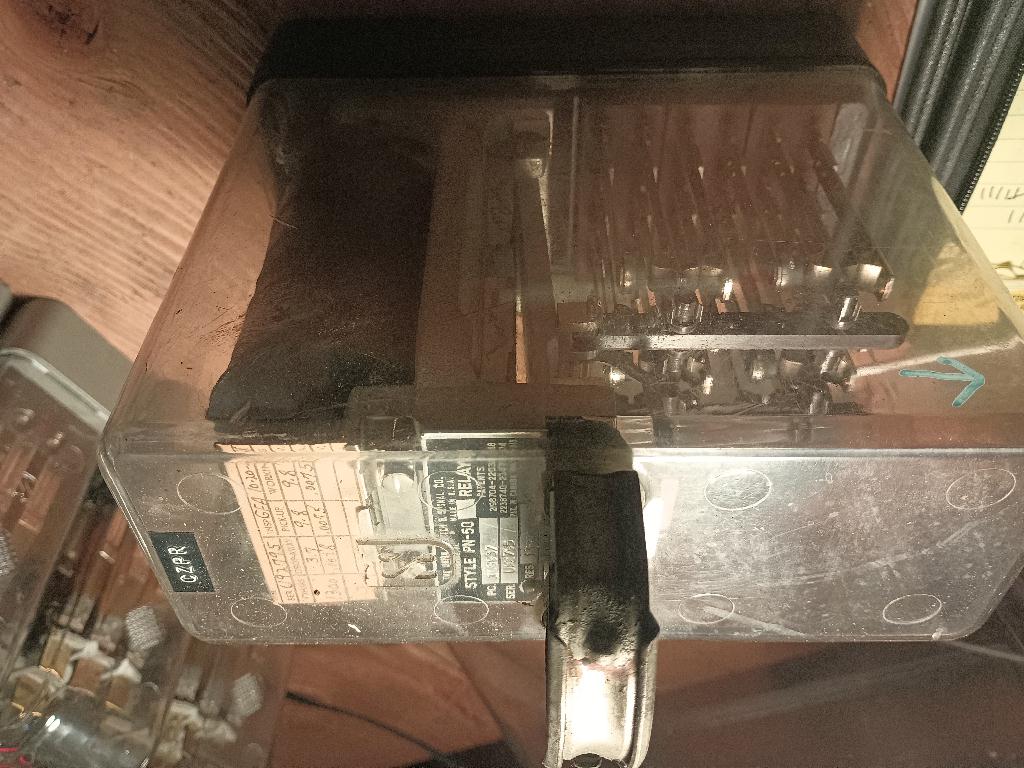

292694

ANSALDO Signaling Products PN-50B,   550 OHMS             USS                            PICTURE

7

LCFTNRELAYBIN1
(6)LCFTNRELAYBOX11


292698

ANSALDO Signaling Products PN-50B,   150 OHMS             USS                            PICTURE

2

(2)LCFTNRELAYBOX11


314551

ANSALDO Signaling Products PN-50,   1000 OHMS      USS

3

LCFTNRELAYBIN1

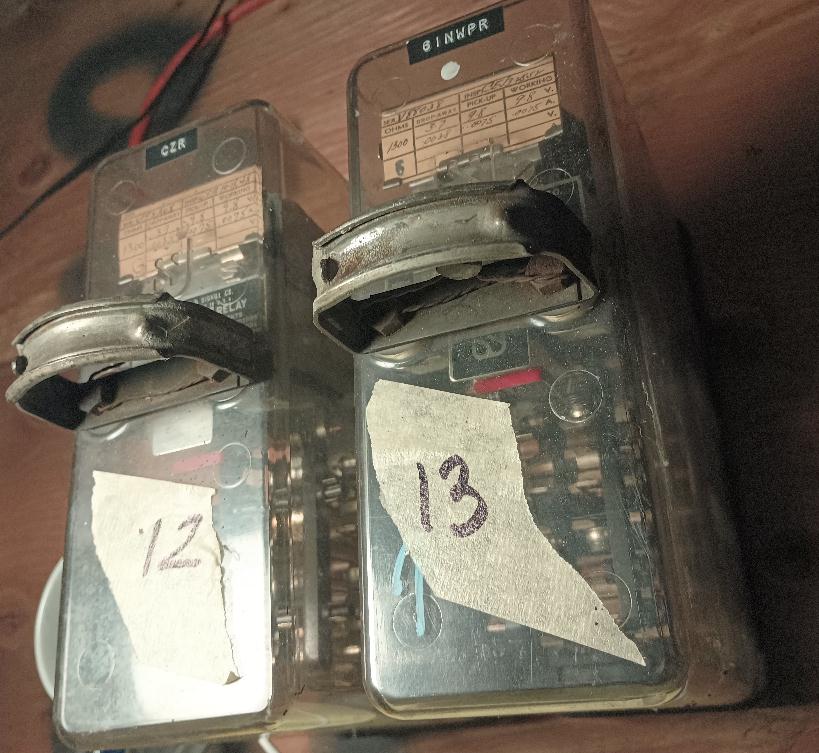

UN108937

   PN-50  UN108937     1300 OHMS

QTY. 01

RELAYBIN3

232138

PT-55 TIME ELEMENT DC RELAY  CLUTCH VOLTAGE 12 V
TIME RANGE .51 TO-6.1 WITH 75 CODE

2

(2)LCFTNRELAYBOX11

278897
279987

PT-55 TIME ELEMENT DC RELAY  CLUTCH VOLTAGE 12 V
TIME RANGE 10 TO-120 SEC   WITH 240 CODE

 1

( 1)LCFTNRELAYBOX11

435577-0001

PN-59  DN NEUTRAL RELAY   32 OHM

3

LCFTNPN50 BOX1

 CODE AND DECODER RELAYS

451544-0102

ANSALDO Signaling Products DECODING UNIT  CODE 180        USS                   PICTURE

3

LCFTNRELAYBIN1

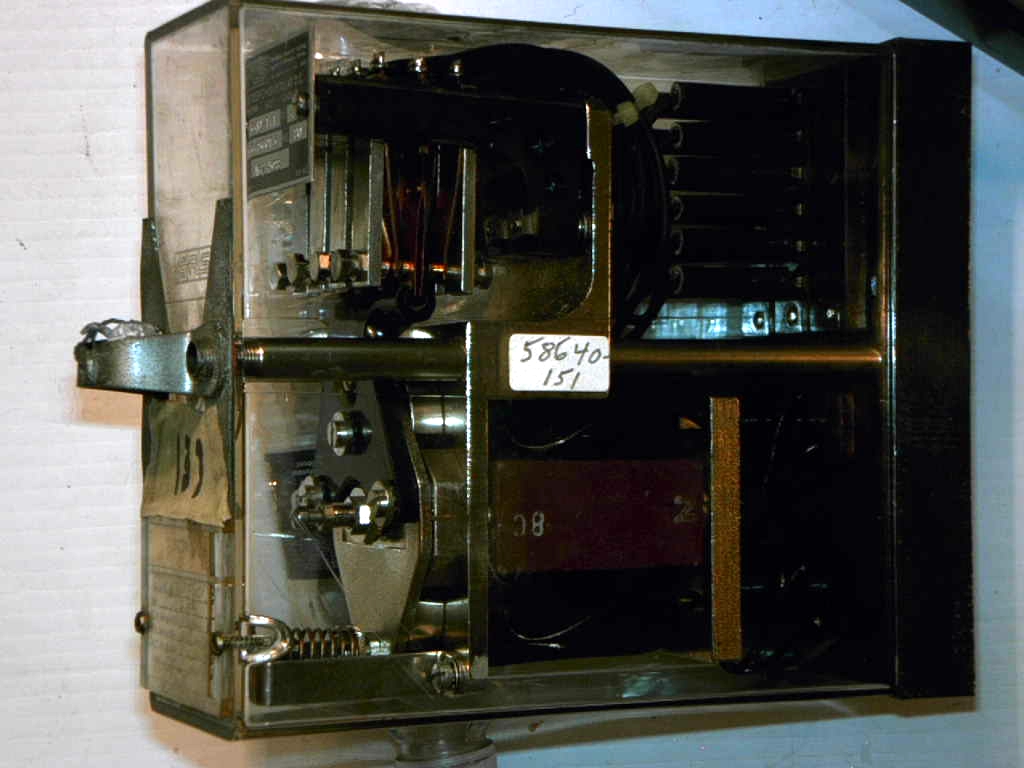

 58640-171

ASCOM CODE RESPONSIVE RELAY DC  (A62-598)   GR4    80  OHMS   GRS       PICTURE

 1

 LCFTNRELAYBIN1

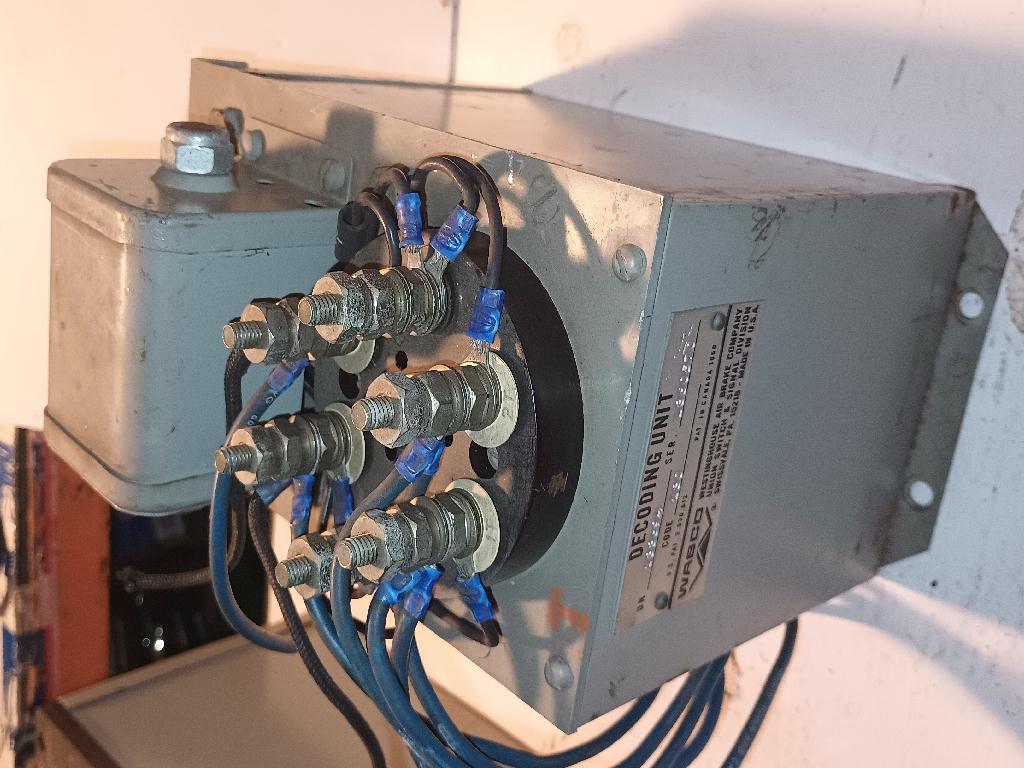

 UN188694

 WABCO DECODER UN188694  CODE 180  WITH WABCO STYLE RN-13 RECEIVER (22 LBS.)   PICTURE

  QTY. 15

 LCFTNWHWOH5

UN322500-701

   PN150B  (USS)  UN322500-701    400 OHMS
 6FB Silver/Carbon,(Standard Duty),ST-1, Single Base,Biased Neutral,Regular Release,Regular Pickup

QTY. 06

RELAYBIN2

UN322500-702

PN150B  (USS)  UN322500-702     REV 35  800 OHM
 6FB Silver/Carbon,(Standard Duty),ST-1, Single Base,Biased Neutral,Regular Release,Regular Pickup

QTY. 09

RELAYBIN2

UN322501-702

PN150B  (USS)  UN322501-702   150B TR    REV 35   4 OHM

QTY. 04

RELAYBIN2

UN322500-704

PN150B  (USS)   UN322500-704 100 OHM

QTY. 09

RELAYBIN2

UN322503-702

 PN150B SR   (USS) )   UN322503-702   250 OHM
 6FB Silver/Carbon,(Standard Duty),ST-1, Single Base,Biased Neutral, Slow Release,Regular Pickup

QTY. 07

RELAYBIN2

N322507-703

PP-151      MAGNETIC STICK   25 OHM

 QTY. 04

RELAYBIN2

N322550-703

 PN250BE       322550-703    QHMS: SERIES 55, IN MULTIPLE 13.8

QTY. 05

LCFTNWHWOH14

N322551-705

 PN258BSR             500 OHMS

QTY. 03

LCFTNWHWOH14

N322559-004

PC250B       322559-004    SOLD 3/12/2026

QTY. 02

LCFTNWHWOH14

 N322559-014

PC250P CODE FOLLOWING
N322559-014
Voltage:  8 - 12
Ohms:     20/20
Contacts:
2N HV 2R LV #1 and #2
2N 2R LV #3 and #4

 QTY. 14

  LCFTNWHWOH14

 N322559-018

PC250P CODE FOLLOWING    322559-018   Ohms:     20/20

 QTY. 04

 LCFTNWHWOH14

The PN-250CG is a direct replacement for the mechanical code generator PN-250 TR

40105600

PN250CG CODE GENERATOR

QTY. 02

LCFTNWHWOH14

40105601

PN250CG CODE GENERATOR  PN-250-CG 180 DC NOMINAL CODE RATE 180
175.4 - 193.2 42% - 44% LV N40105601

QTY. 01

LCFTNWHWOH14

40105602

PN250CG CODE GENERATOR  PN-250-CG 75-XX  NOMINAL CODE RATE 75
75 68.4 - 75.6 45% - 47% LV N40105602

QTY. 03

LCFTNWHWOH14

40105603

PN250CG    CODE GENERATOR  PN-250-CG 120    NOMINAL CODE RATE 120
DC 120 117 - 129 44% - 46% LV N40105603

QTY. 01

LCFTNWHWOH14

40105607

 PN250CG   CODE GENERATOR   PN-250-CG 180 XX  NOMINAL CODE RATE 180
175.4 - 193.2 42% - 44% HV N40105607

QTY. 01

  LCFTNWHWOH14

40105608

PN250CG    CODE GENERATOR PN-250-CG 75 AC   NOMINAL CODE RATE 75
68.4 - 75.6 45% - 47% HV N40105608

QTY. 02

LCFTNWHWOH14

40105611

PN250CG    CODE GENERATOR PN-250-CG 120 AC  NOMINAL CODE RATE 120
117 - 129 44% - 46% HV N40105611

QTY. 01

LCFTNWHWOH14

UN295421

 OR11 SWITCH OVERLOAD RELAY 12 AMPS

QTY. 02

RELAYBIN3

UN451036-0702

QTY. 01

 LCFTNWHWOH6

 56001-262

GRS  56001-262  GR 2 (62-125)  500 OHM

QTY. 02

LCFTNWHSKID10

 56001-780-01

GRS  56001-780-01  GR 1 (62-359)  194 OHM   B RELAY

QTY. 11

LCFTNWHSKID10
(10) LCFTNWHWOH6

56001-992-07

GRS  56001-992-07  GR 7 (62-125)  500 OHM     B RELAY  PICTURE

QTY. 149

LCFTNWHSKID10
(37)LCFTNWHWOH6

58640-171-04

GRS   58640-171-04  GR 4   (A62-0598)  80 OHM

QTY. 03

 LCFTNWHWOH6

58645 -172-05

GRS   58645 -172-05   GR 5   (A62-0247) 500 OHM

QTY. 02

LCFTNWHWOH6

56001-762-02

GRS   56001-762-02   GR2   (A62-0262)      B1 RELAY  500 OHM Neutral Relay,    $325.00

QTY. 45

LCFTNWHWOH6
(5)LCFTNSAFETRAN BIN

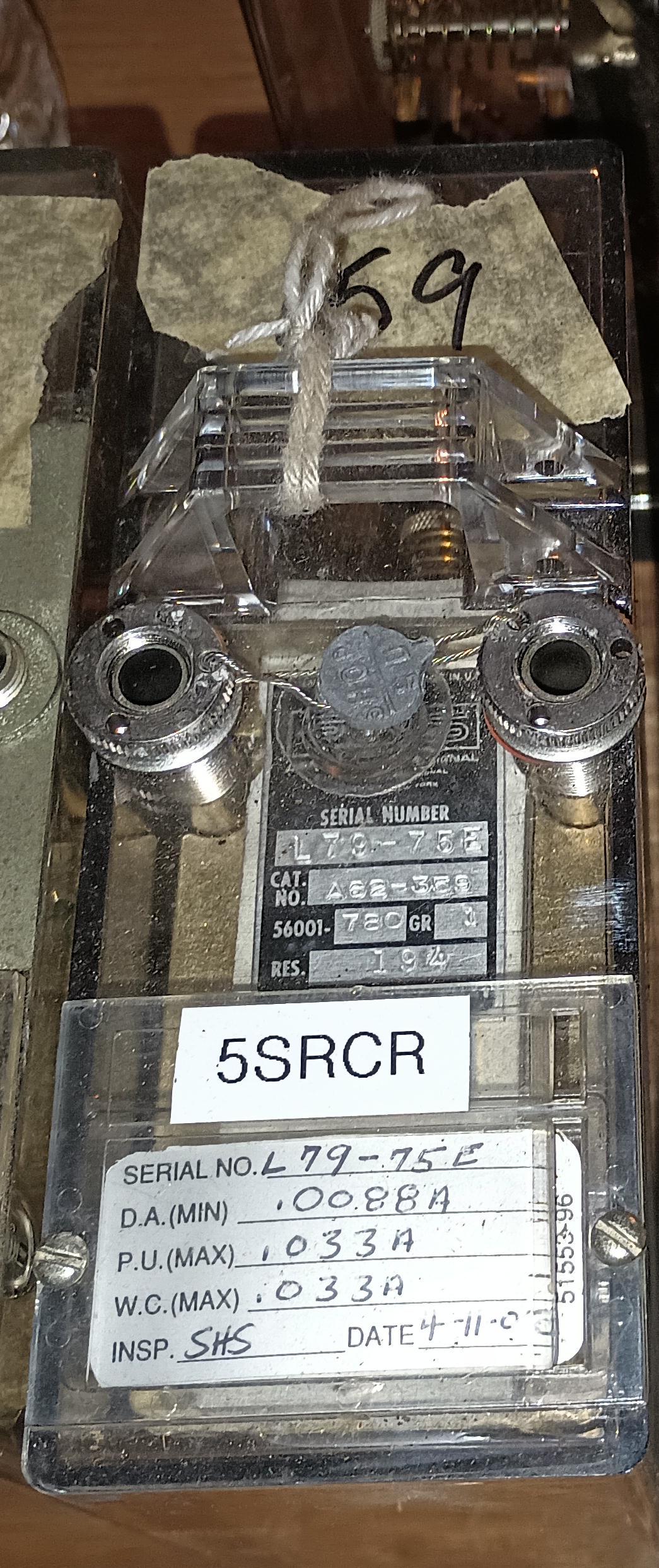

56001-780-01

GRS   56001-780-01  GR1  (A62-359)   194 OHM            PICTURE

QTY. 18

LCFTNWHWOH6

56001-787-05

GRS    56001-787-05  GR5   (A62-0319)              100 OHM

QTY. 01

LCFTNWHWOH6

56001-873-07

GRS   56001-873-07  GR7     450-.12  OHM

QTY. 02

LCFTNWHWOH6

56001-908

GRS   56001-908  GR1       (A62-0320)                1800 OHM     B RELAY

QTY. 02

LCFTNWHWOH6

 56001-916

GRS    56001-916   GR1    (A62-431)       135-.064 OHM

QTY. 03

LCFTNWHWOH6

56001-921

GRS    56001-921   GR4    (A62-122)       500 OHM

QTY. 02

 LCFTNWHWOH6

56001-926

GRS   56001-926   GR1    (A62-429)       500 OHM

QTY. 09

LCFTNWHWOH6

57100-703-01

 GRS B1 THERMAL RELAY  (A62-471)   CLASS TA  9-11 SECONDS 57100-703  GR1

QTY. 05

RELAYBIN3

188697

 DECODING UNIT 188697 (IDENTICAL TO THE 188694)   CODE 120

QTY. 15

 LCFTNWHWOH6

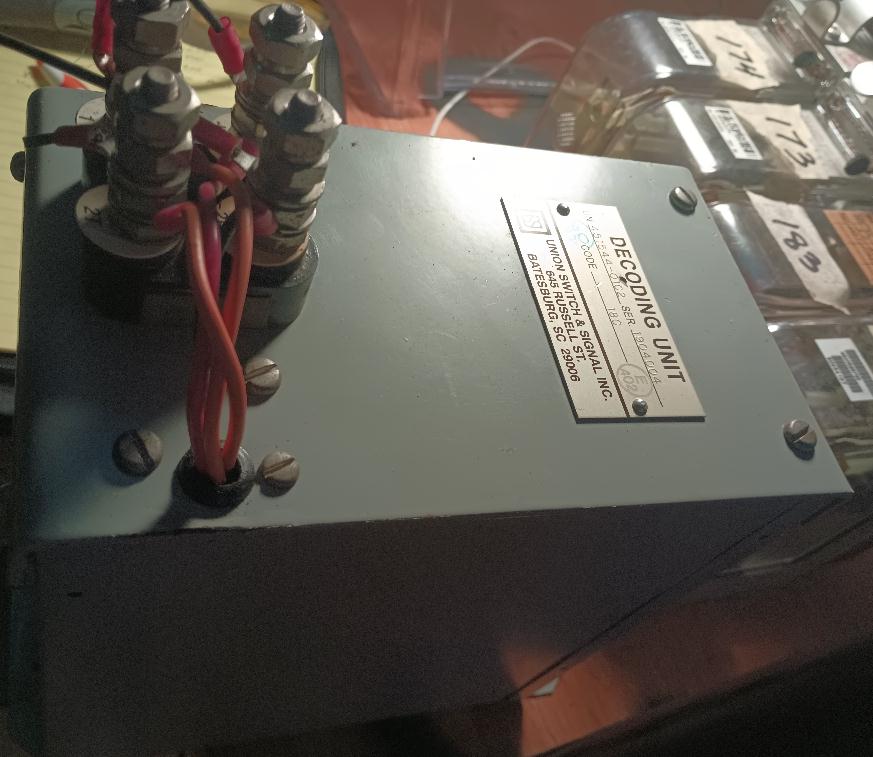

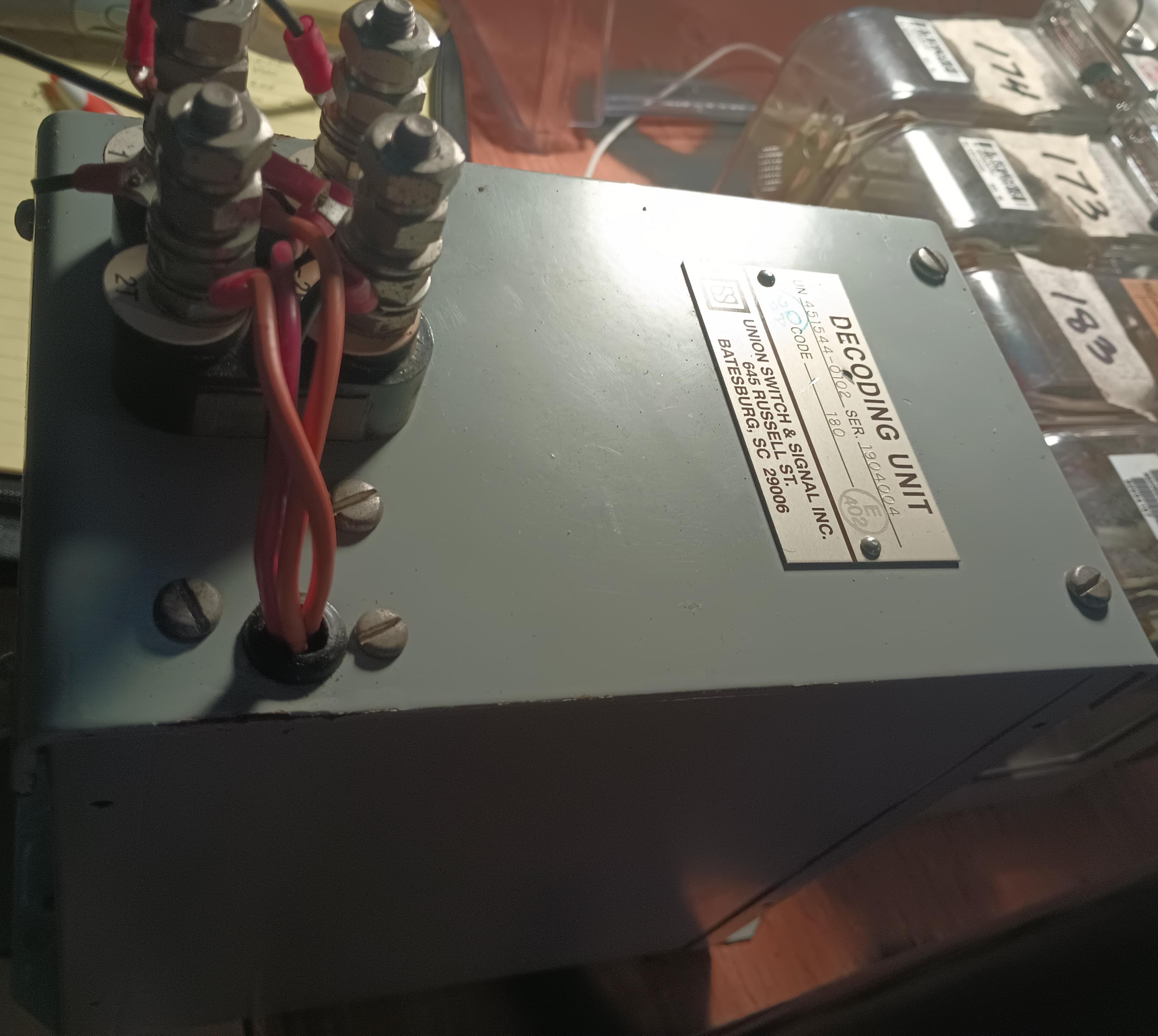

451544-0102

DECODING UNIT 451544-0102  CODE 180           PICTURE

QTY. 8

LCFTNWHWOH6

451544-0101

DECODING UNIT 451544-0101  CODE 180

QTY. 3

LCFTNWHWOH6

150956

   DN-11    150956    2 OHM

QTY. 02

RELAYBIN3
 (1) WOH8

150956

 DN-11   150956      4 OHM

QTY . 02

 RELAYBIN3

152232

DN-11   152232     2   OHM

QTY. 07

RELAYBIN3
  (4) WOH8

154807

 DN-11     154807       1000 OHM

QTY. 01

RELAYBIN3

157187

DN-11      157187   NEUT. RELAY    1000 OHMS

QTY. 14

RELAYBIN3
(10)WOH8

158263

DN-11   158263

QTY. 05

WOH8

157284

DN-11  157284     NEUT. RELAY        225 OHMS

QTY. 02

RELAYBIN3

 157284

DN-11      157284   NEUT. RELAY  V65833    400 OHMS

 QTY. 06

  RELAYBIN3
 (2)WOH8

157285

   DN-11      157285      500 OHM

QTY. 01

RELAYBIN3

157312

  DN-11

QTY. 01

WOH8

158263

  DN-11   158263      NEUT. RELAY   1000 OHMS

QTY. 03

RELAYBIN3

159671

   DN-11     159671

QTY. 01

WOH8

159871

   DN-11     159871     500 OHM

QTY. 03

RELAYBIN3
 (2)WOH8

159996

DN-11     DN159996      250 OHM

QTY. 01

RELAYBIN3

161396

DN-11     161396   1500 OHM

QTY. 03

RELAYBIN3
(1) WOH8

166906

DN11

QTY. 01

WOH8

173931

DN-11  173931

 QTY. 04

WOH8

191964

  DN-11      191964     1000 OHM

QTY. 01

RELAYBIN3

213536

DN-11

QTY. 01

WOH8

214021

DN-11P  214021

QTY. 03

RELAYBIN3
(2)WOH8

220131

DN-11P

QTY. 02

WOH8

245864

DN-11

QTY. 01

WOH8

286648

DN-11P      286648   NEUT. RELAY    4,5...4.5  OHMS

QTY. 03

RELAYBIN3
 (2)WOH8

 UN157285

DN-11    UN157285      500 OHM

QTY. 01

 RELAYBIN3

172633

   DN-18   172633  WABCO SLOW P/U  225 OHM

QTY. 03

RELAYBIN3

 TYPE K RELAYS

53000-96-GR14

TYPE K RELAY   750 OHMS

QTY. 15

WOH8

 SAFETRAN

400 000

 P/N  400 000      500  OHMS

QTY. 24

 LCFTNSAFETRAN BIN

400 210

 P/N  400 210      194  OHMS

QTY. 10

 LCFTNSAFETRAN BIN

400 515

 P/N  400 210         .5  OHMS

QTY. 02

 LCFTNSAFETRAN BIN

 MISC.

L18-33-3018

 (SEPSA )  SEPSA L18-33-3018         PICTURE

QTY.  5

LCFTNWHATTICSTAIRS

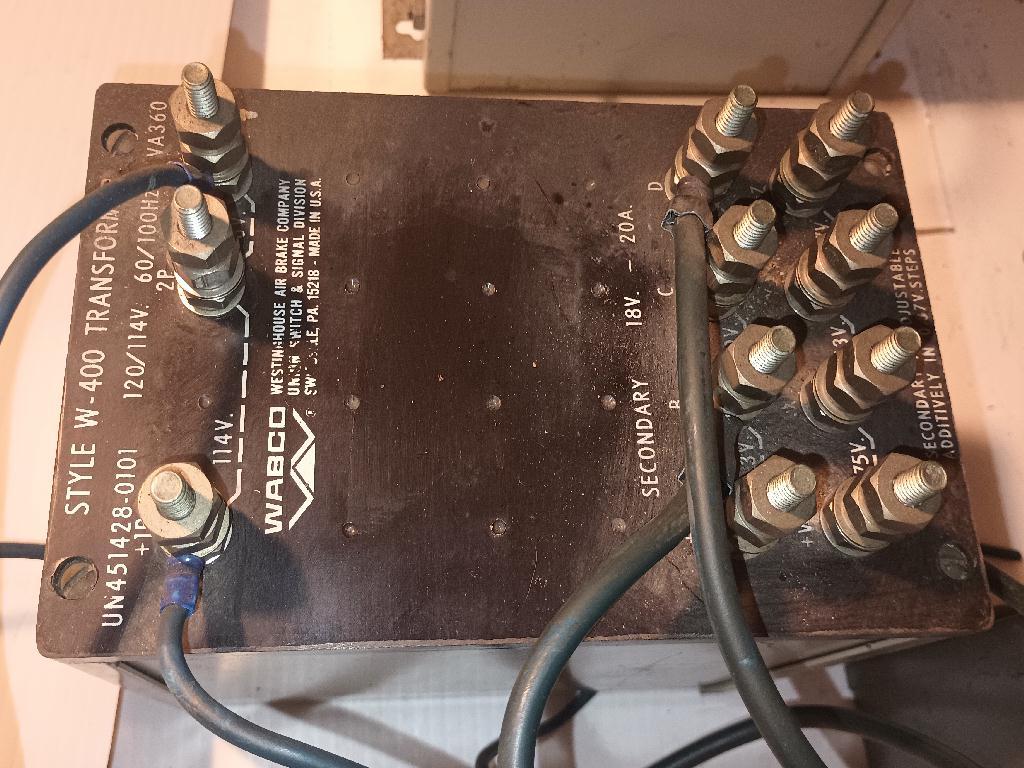

W-400VA360

WABCO W-400 TRANSFORMER VA360 UN451428-0101 (21.2 LBS.)   PICTURE

QTY. 34

 LCFTNWHWOH5

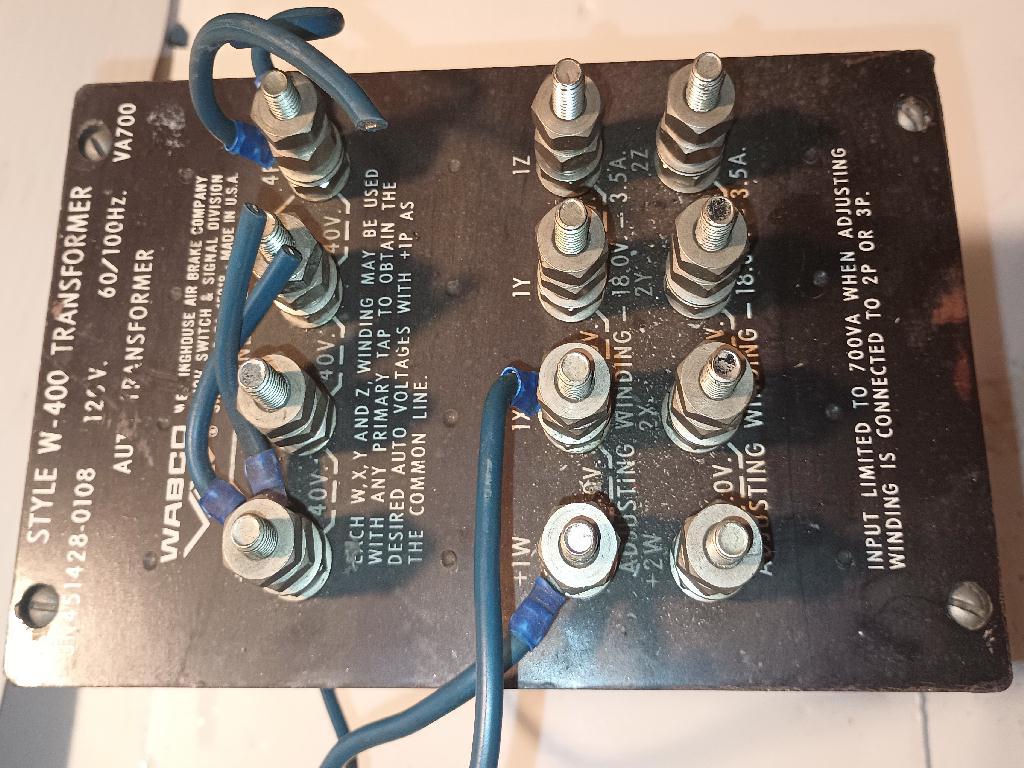

W-400VA700

WABCO W-400 TRANSFORMER VA700 UN451428-0108 (20.6 LBS.)   PICTURE

QTY. 14

LCFTNWHWOH5

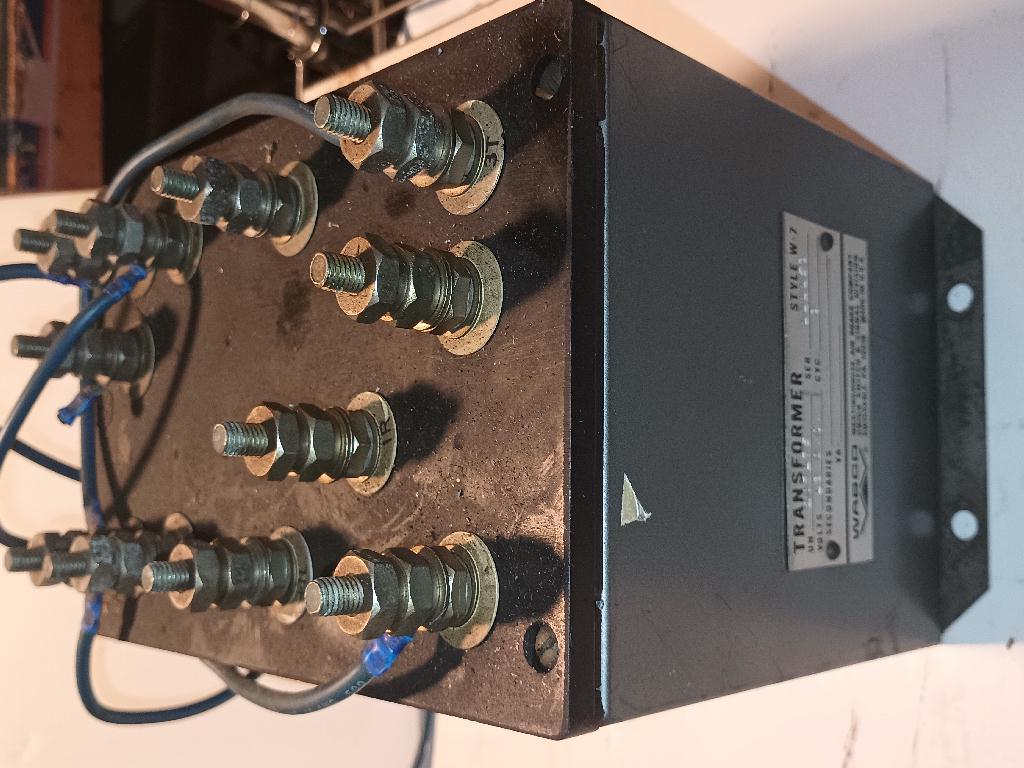

207175

WABCO STYLE W-7 TRANSFORMER 207175   13 VDC  CYC. 3 (13.25 LBS.)   PICTURE

QTY. 15

 LCFTNWHWOH5

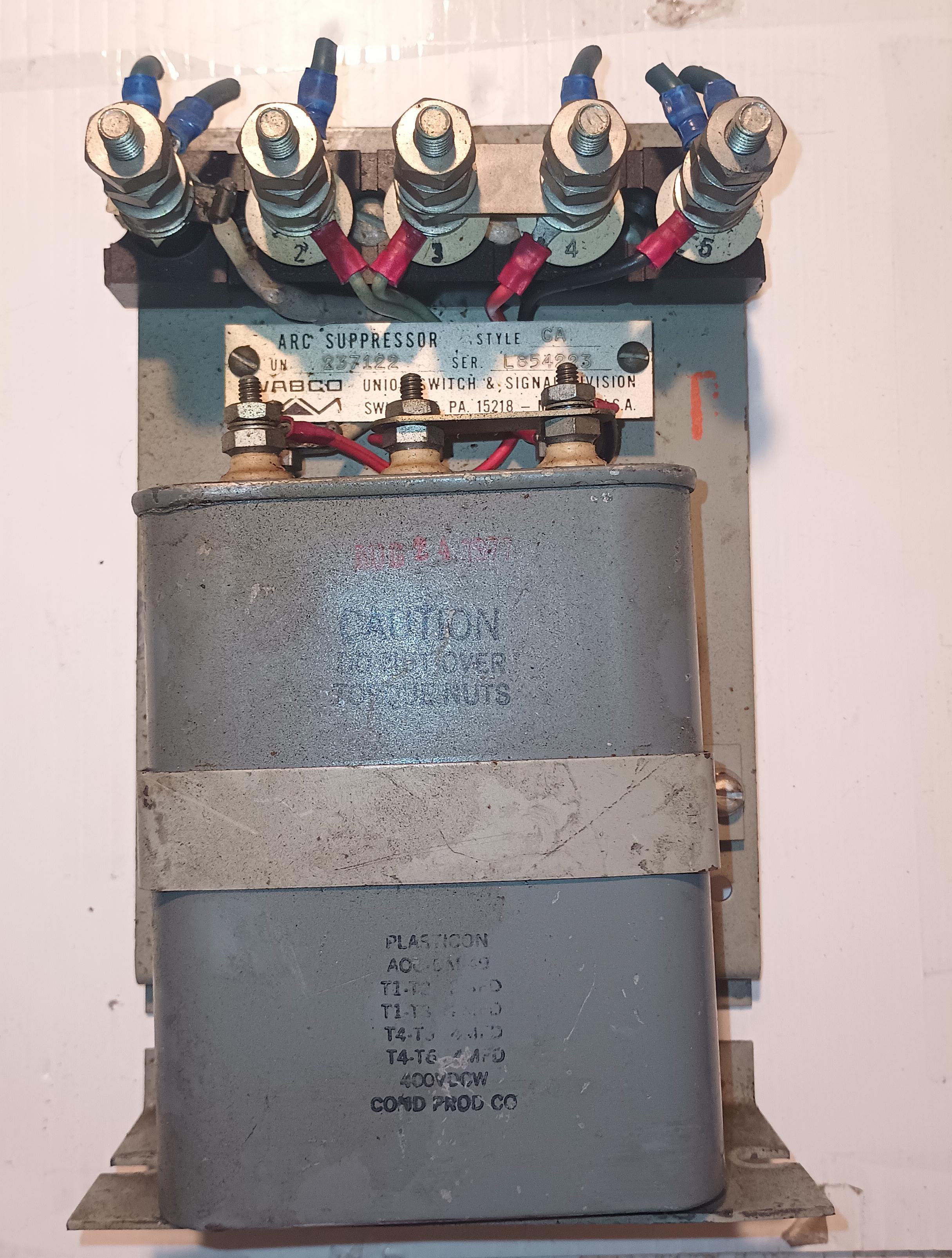

N237122

WABCO ARC SUPRESSOR 237122  STYLE CA   (3.6 LBS)                  PICTURE

QTY.13

 LCFTNWHWOH5
(3) LCFTNWHWOH14

 UN295421

    OR11 SWITCH OVERLOAD RELAY 12 AMPS

 QTY. 02

RELAYBIN3

UN295953

OVERLOAD RELAY

QTY. 01

LCFTNRELAYBOX11
