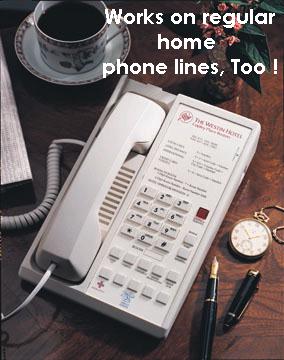

  TELEDEX DIAMOND+10

FEATURES AND BENEFITS

Single Line Analog Phone: - Compatible with all hotel/motel PBX systems.

Largest Customizable Faceplate:Ample room to create a faceplate which best fits the ambiance of the room and provides important information to the guest.

10 Programmable Guest Service Buttons: Provides the guest with a wide selection of available services accessible with the single touch of a key. This eliminates the need to read through phone books, hotel information packets or, more importantly, wait for a hotel concierge or staff member to provide information.

"Euro" or Standard "K" Handsets:Select one of two different handsets, whichever fits the room decor. Both are hearing aid compatible and are compliant with the Hearing Aid Compatibility (HAC) act of 1988.

Volume Control:A two step volume control function provides just the right amount of control to accommodate difficult hearing situations. The volume increase levels meet the requirements established in the 1995 amendments to the HAC act.

Proprietary Message Waiting Circuitry:Patent pending design allows this phone to reliably support five or more Message Waiting phones on a single line.

Memory Backup: No need to fumble with installing a battery. The Diamond +10’s efficient design will retain the memory settings for virtually the life of the phone.

Easy Access Data Port:Guests do not have to unplug the phone or use an awkward line splitter when they want to use their laptop computer. They can simply plug their computer modem directly into the side of the Diamond phone and they’re ready to go.

Desk or Wall Mount: For those areas where counter space is at a premium, the Diamond +10 can easily be wall mounted in a convenient location.

Specifications

Cosmetic

  • Standard Color: Ash
  • Special Order Colors: Black, White,  Ivory
  • Number Guest Service Buttons: 10, plus programmable flash key location.
  • Guest Service Button Colors Available:
    • Ash
    • Black
    • Yellow -PMS 012
    • Blue - PMS 302
    • Green - PMS 348
    • Violet - PMS 260
    • Burgundy - PMS 202
    • Orange - PMS 151
    • Brown - PMS 469
  • Line Cord Lengths Available:
    • 7 inch 2 pair RJ-11
    • 10 foot 2 pair RJ-11
    • 18 foot 2 pair RJ-11
    • 25 foot, 2 pair RJ-11
  • Handset Cord: 10 foot coiled

 Physical

  • Custom Faceplate Size: 3 1/8” x 8 3/4”
  • Footprint: 6 1/4” x 9”
  • Weight: 2.3 pounds
  • Packaging: 12 per master carton
  • Packaging Dimensions: 23” (l) x 16” (w) x 13” (h)
  • Packaged Weight: 29 pounds

Technical

  • Phone Type: Single line, analog
  • Guest Service Button memory Capability: 15 characters (maximum)
  • Redial Function: One touch redial of last number (up to 35 characters).
  • Hearing Aid Compatible/Volume Control (HAC/VC): Yes
  • Volume Control on Base:
    • Two step. 17 dB total for the handset
    • Message Waiting Support: Up to 10 phones in parallel
    • Message Waiting Formats:
      • High Voltage
      • ATT (Low Voltage) (factory option)
      • Reverse Polarity (factory option)
      • Siemens (factory option)
      • Alcatel (factory option)
      • Ericsson (factory option)
  • Flash Function: Programmable into any valid guest service button location.
  • Flash Timing Available:
    • 600 ms
    • 100 ms (factory option)
  • Pause Timing: 3.6 Seconds
  • Data Port: 2 wire, RJ-11
  • Signaling Available:
    • Standard 12 tone DTMF
    • Pulse Dial (factory option)
  • Ringer Equivalence: 0.7B
  • Loop Resistance: 1,200 Ohms (maximum)
  • Loop Type: Non polarity
  • Loop Battery Feed: 20 to 100mA
  • Operating Voltage: 24 to 56 VDC Non polarity
  • Registered Connector: USOC RJ-11C
  • Cabling Requirement: 1 pair (minimum)
